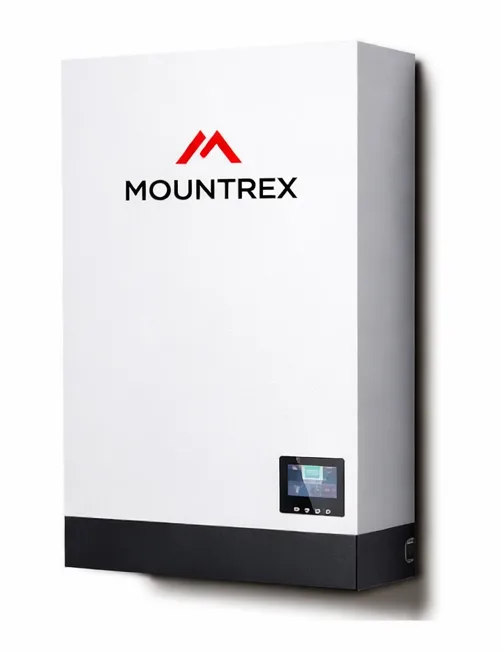

Charania Renewables’ own LFP battery label. 51.2V, 100Ah, 5.12 kWh. Built-in BMS with LCD display, WiFi and SOC indicator. >6,000 cycle life. Supplied by Zetara. 7-year warranty direct through Charania Renewables.
51.2V / 100Ah. Residential and small commercial solar storage. 4–8 hours backup depending on load.
LV architecture. Compatible with major hybrid inverters in Pakistan via CAN or RS485.
At 80% DoD, 0.5C, 25°C. >15 year design life. Maintenance-free operation.
7-year warranty handled directly by Charania Renewables. No manufacturer referral.
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Rated Energy | 5.12 kWh |
| Cell Chemistry | LFP (Lithium Iron Phosphate) |
| Cycle Life | >6,000 cycles @ 0.5C, 80% DoD, 25°C |
| Design Life | >15 years |
| Dimensions W×D×H (mm) | 550 × 400 × 178 (±2mm) |
| Weight | 44.5 kg (±1 kg) |
| Charging Voltage | 56.0V – 57.0V |
| Discharge Cut-off Voltage | 44.8V |
| Max Constant Charge Current | 100A |
| Recommended Charge Current | 50A |
| Max Constant Discharge Current | 100A |
| Charge Temperature | 0°C to 50°C |
| Discharge Temperature | −20°C to 55°C |
| Storage Temperature | −20°C to 55°C |
| Communication | RS485 / CAN |
| Display | LCD — voltage, current, temp, SOC |
| Indicators | SOC LED, ALM (alarm), RUN (operating) |
| Connectivity | WiFi |
| BMS | Built-in — cell balance, temp, current, voltage management |
| Cell Balance | 120mA passive (triggers at >40mV difference) |
| Inverter Compatibility | Goodwe, Growatt, Deye, Solis, SolarEdge, Voltronic |
| Warranty | 7 years — Charania Renewables direct |
Every MountRex unit has a built-in BMS with complete protection and monitoring. It manages cell voltage, current, temperature and state-of-charge in real time — and communicates all data to your inverter via CAN or RS485.
Most distributors in Pakistan sell whatever brand is available. MountRex is Charania Renewables’ own label — specified by our engineers, supplied by Zetara and warranted directly by us.
When you buy a MountRex, your warranty claim comes to us. We manage it. If there is a fault, we resolve it. No overseas referral, no waiting.
The specification is fixed and controlled. The unit you receive today matches what we sized your system for. We do not substitute modules between orders.
Share your inverter model, daily consumption and backup requirement — our team will confirm sizing and arrange supply through the nearest installation partner.
