300W to 500W horizontal-axis turbines for small commercial, agricultural and off-grid applications. Three models — NE-300M, NE-400M and NE-500M. NdFeB PMG, 12/24V output, start at 2.5 m/s.
Three models: NE-300M, NE-400M, NE-500M. 12V or 24V output. Wheel diameter 1.35–1.65 m.
Consistent cut-in across all three models. Rated wind speed 11–12 m/s depending on model.
Horizontal-axis turbine. Requires open sites with consistent wind direction. Yaws automatically to face wind.
Directly compatible with standard 12V and 24V battery and charge controller systems.
| Parameter | NE-300M | NE-400M | NE-500M |
|---|---|---|---|
| Rated Power | 300W | 400W | 500W |
| Max Power | 320W | 410W | 510W |
| Rated Voltage | 12V / 24V | ||
| Start Wind | 2.5 m/s | ||
| Rated Wind | 11 m/s | 11.5 m/s | 12 m/s |
| Survival Wind | 45 m/s | ||
| Wheel Diameter | 1.35 m | 1.55 m | 1.65 m |
| Blades | 3 or 5 pcs — Nylon fibre | ||
| Generator | NdFeB 3-phase AC PMG | ||
| Shell | Aluminium alloy die-cast | ||
| Protection | Electromagnetic / wind wheel sideways | ||
| Working Temp | −40°C to 80°C | ||

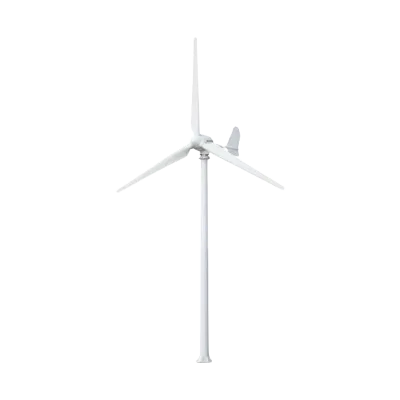

Unlike the Q-Type and GV-series vertical-axis turbines, the M-Type is a horizontal-axis wind turbine (HAWT). This means it yaws to face the wind and performs best on open sites with a consistent prevailing wind direction. It is not suited to turbulent rooftop environments or urban settings where wind changes direction frequently. For those applications, the Q-Type or GV-series VAWT is the correct choice.
The M-Type delivers best results on pole or tower mounts at open sites — farmland, rural facilities, coastal plots and peri-urban industrial land where prevailing wind is consistent and relatively unobstructed. At these sites it provides reliable 12/24V battery charging for lighting, pumping or security loads.
The M-Type outputs directly to 12V or 24V battery banks via a wind charge controller, the same interface as a solar charge controller. It can operate alongside a solar panel on the same battery bank, providing generation during hours when solar output is absent or reduced. Combined generation extends battery autonomy significantly.
At 300–500W rated output the M-Type is suited to continuous low-load applications — telecoms repeaters, remote sensors, monitoring stations and security cameras — particularly in coastal or open-country locations where wind is reliable. The electromagnetic braking system provides automatic overspeed protection without manual intervention.
Tell us about your site and power requirements — our team will confirm whether the M-Type suits your location, or recommend a VAWT if your site has turbulent or multi-directional wind.
